Smart Mini LED indicators

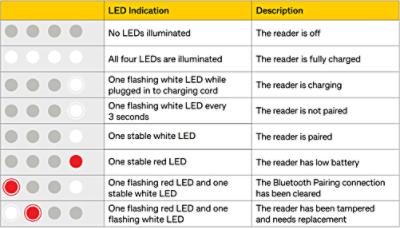

CommBank Smart Mini merchant terminal LED light indicators. If no LEDs are illuminated then the reader is turned off. When all four LEDs are illuminated white then the reader is fully charged. One flashing white LED while the reader is charging confirms the reader is charging. One white LED flashing every three seconds means the reader is not paired to a Bluetooth device. One stable white LED means the reader is paired to a Bluetooth device. One stable red LED indicates the reader has low battery. One flashing red LED and one stable white LED confirms the Bluetooth pairing connection has been cleared. One flashing red LED and one flashing white LED indicates the reader is damaged and needs replacing.

Need more help?

Download the Smart Mini User Guide for more information about using your Smart Mini reader.

User Guide (PDF 2.3MB)
